LED Products
GTI’s D50 LED Color Viewing Solutions
GTI’s LED lamp is a high CRI solution for Graphiclite D50 viewing booths and overhead luminaires. This new lamp combines the benefits of LED technology, longer lamp life and reduced energy cost, with the closest match to D50 spectral specifications ensuring tight conformance to the ISO 3664 viewing standard. The following products are currently offered with D50 LED lamp technology.
Viewing Stations

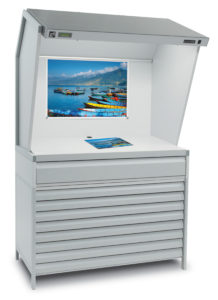

CVX-3052/LED with file drawers

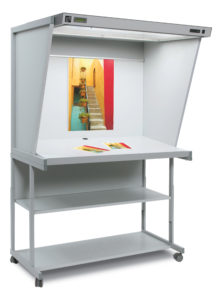

EVS-3052/LED/FS with side walls

VPI-52/LED
Model | Description |
---|---|
CVX-3052/LED/FS | CVX viewing station with a 29” deep x 52” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, side walls, a print bar, and a height adjustable (at set-up) rolling floor stand. Available with file drawer and storage cabinet options. |
CVX-30106/LED/FS | CVX viewing station with a 29” deep x 106” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, side walls, a print bar, and a height adjustable (at set-up) rolling floor stand. Available with file drawer and storage cabinet options. |
CVX-3/LED | CVX viewing station with a 48” deep x 64” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, side walls, and floor stand. Available with file drawer and storage cabinet options. |
CVX-4/LED | CVX viewing station with a 48” deep x 130” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, side walls, and floor stand. Available with file drawer and storage cabinet options. |
EVS-3052/LED/FS | EVS viewing station with a 29” deep x 52” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, a print bar, and a height adjustable (at set-up) rolling floor stand. Available with side walls, file drawer, and storage cabinet options. |
EVS-4052/LED/FS | EVS viewing station with a 40” deep x 52” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, a print bar, and a height adjustable (at set-up) rolling floor stand. Available with side walls, file drawers, and storage cabinet options. |
EVS-30106/LED/FS | EVS viewing station with a 29” deep x 106” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, a print bar, and a height adjustable (at set-up) rolling floor stand. Available with side walls, file drawers, and storage cabinet options. |

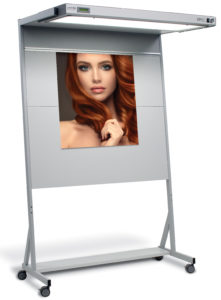

VPI-52/LED | VPI vertical print inspector with a 45” high x 52” wide viewing area. Includes D50 LED lamps (5000K), LiteGuard lamp monitoring, a print bar, and casters. |
VPI-52x/LED | VPI-52/LED with a lower luminaire and side walls. |
Wall Viewing Systems

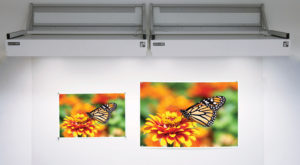

GLL-548/LED/V Luminaires with wall brackets
Model | Description |
---|---|
GLL-548/LED/V | 48″GLL style luminaire designed for wall viewing. Includes D50 LED lamps (5000K). Must be wired into a switched circuit. |
GLL-548/60/LED/V | 60″ GLL style luminaire designed for wall viewing. Includes D50 LED lamps (5000K). Must be wired into a switched circuit. |
GLE-548/LED/V | 48″ GLE style luminaire designed for wall viewing. Includes D50 LED lamps (5000K), a line cord, and power switch. |
GLE-548/60/LED/V | 60″ GLE style luminaire designed for wall viewing. Includes D50 LED lamps (5000K). Must be wired into a switched circuit. |
Requires the purchase of a wall bracket (WB-GL/48). Metal wall panels are recommended to hold artwork with magnets. Optional wireless remote is available. |

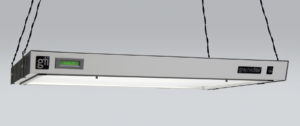

Overhead Luminaires

GLE-348/LED
Model | Description |
---|---|
GLL-348/LED | GLL style luminaire. Includes a symmetrical lens and 48” D50 LED lamps (5000K). Must be wired into a switched circuit. |
GLE-348A/LED | GLE style luminaire. Includes an asymmetrical lens, 48” D50 LED lamps (5000K), a line cord, and power switch. |
GLE-348/LED | GLE style luminaire. Includes a symmetrical lens, 48” D50 LED lamps (5000K), a line cord, and power switch. |
