Color Harmony Inspection System

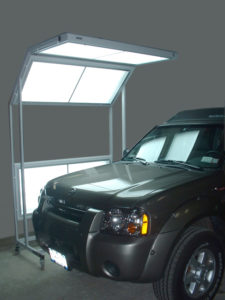

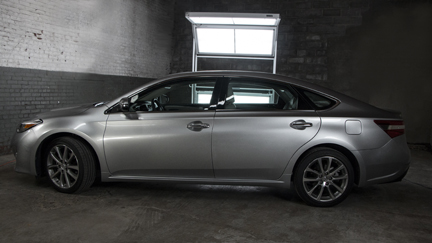

The GTI Color Harmony Inspection System (CHIS) is ideal for the viewing of automobiles, furnishings, cabinetry, recreational equipment, and any other large product that requires visual inspection.

The CHIS is available in three sizes. Features include three independently controlled luminaires with three light levels, multiple angles of illumination, a wireless remote, GTI ColorGuard II lamp tracking, and casters to easily position the viewing system.

The CHIS has three independently controlled luminaires, each with three light levels of illumination. Luminaires are controlled by a wireless remote control that can also be used from the system’s storage shelf.


The CHIS meets the ASTM D1729, ISO 3668, and SAE J361 standards for color viewing. Enabled by GTI’s 6500K ColorMatcher lamps, it has a CIE rating of B/C based on ISO/CIE 23603:2005 (previously designated as CIE Publication 51), one of the highest in the industry. The CHIS is shipped with a certificate of product conformance (NIST traceable).


Model Dimensions (H x W x D)
CHIS-40 100” x 42” x 44” (254 cm x 107 cm x 112 cm)
CHIS-52 100” x 54” x 44” (254 cm x 137 cm x 112 cm)
CHIS-64 100” x 66” x 44” (254 cm x 168 cm x 112 cm)
